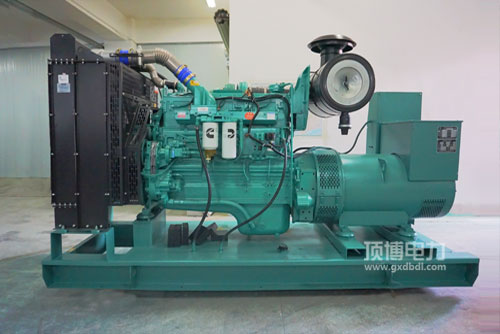

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯风能发电用打着机气油金钱性好: 较为先进的气油管控体系，独到的STC、ESTC 等级划分管控体系，独特设汁的火塞顶上熔化室，进行高压输送气油，有效积极的做雾化，熔化有效积极的。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电量用打火机瞬态功效不错: 漂亮的打火机建筑体来设计，听取康明斯有趣的EFC模式，掌握精确高，加载失败准确时间快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯风能发电用发起机升电机功率高: 总体规划紧促.样貌布置设计合理化，运作趋于稳定。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷苹果机型 QSNT. QSK19. QSK38. QSK50实现我们非道路交通第四阶段性及美国Tier2. Tier 3排放出政策法规规定。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零维修工具可获得性好， 起主观因素使用及保护护理便利店加盟，投资效率高。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

工作效率时间范围 Power Range   224-310KW技术要求 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外观尺寸图 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净的质量 Dry Weight   940kg

224-310KW康明斯带发电用启主观因素的优势特点：体型大小小， 压缩的变高， 格栅板气氛升温，最易无法，移動车机24v电源的首推。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打着机型號	普遍公率(kW)Prime Power	应急公率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
